产品概述Product Brief
The static reactive power generator SVG adopts a power-electronic device (IGBT) that can be turned off to form a self-commutated bridge circuit, connected in parallel to the power grid through a reactor, and appropriately adjusts the amplitude and phase of the output voltage of the AC side of the bridge circuit, or directly Control its AC side current. Quickly absorb or emit the required reactive power to achieve the purpose of quickly and dynamically adjusting reactive power. As an active compensation device, it can not only track the inrush current of the impact load, but also track and compensate the harmonic current.
静止无功发生器SVG采用可关断电力电子器件（IGBT）组成自换相桥式电路，经过电抗器并联在电网上，适当地调节桥式电路交流侧输出电压的幅值和相位，或者直接控制其交流侧电流。迅速吸收或者发出所需的无功功率，实现快速动态调节无功的目的。作为有源型补偿装置，不仅可以跟踪冲击型负载的冲击电流，而且可以对谐波电流也进行跟踪补偿。

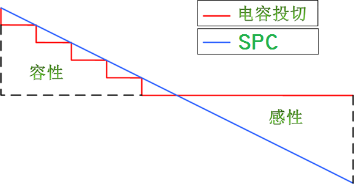

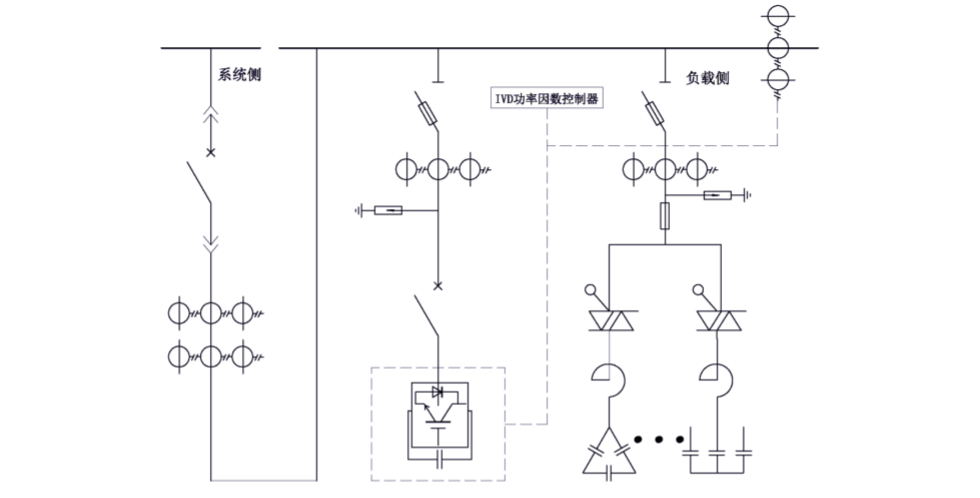

混合补偿SVGC示意图Schematic diagram of mixed compensation SVGC
注Note：
无源单组的补偿容量一定要小于有源的补偿容量，才可达到细补的要求。
The compensation capacity of the passive single group must be smaller than the active compensation capacity to meet the requirements of fine compensation.
技术参数表Technical Data Sheet
过载能力 | Overload capacity | 120%，1min，110%长期运行，120%短期运行（0.5h-1h） |
冷却方式 | cooling method | 强迫风冷 |
通讯接口 | Communication Interface | RS232/Modbus |
噪音水平 | Noise level | ＜65dB@1m |
无功补偿能力 | Reactive power compensation ability | -1～1 |
功能设置 | Function settings | SVG、TSVG |
海拔高度 | Altitude | 2000米/最高4000米，1%/100米降容 |
响应时间 | Response time | 暂态响应时间300us，全响应时间10ms |
电流互感器 | Current Transformer | 300:5到50000:5（可灵活设置）开环连接 |
电路拓扑 | Circuit topology | 三电平 |
通讯接口 | Communication Interface | RS485,网口 |
通讯协议 | Protocol | 电总协议，Modbus协议、TCP/IP、DTU/FTU |
快速响应时间 | Fast response time | ＜50μs |
全响应时间 | Full response time | ＜5ms |
开关频率 | On-off level | 30kHz |
保护功能 | Protective function | 过压保护、欠压保护、短路保护、过补偿保护 |
故障报警 | error alarm | 500条 |
监控 | monitor | 独立/集中监控 |
显示屏 | Display | 彩色触摸屏 |
安装方式 | Installation method | 机架式/壁挂式 |
防护等级 | Protection level | IP20可定制 |
电网频率 | Grid frequency | 50Hz/60Hz |
遵循标准 | Follow the standard | IEEE519\IEC 61000-3-6,ER G5/4 |
资质认证 | Certification | CQC认可实验室型式试验报告 |
常用规格&产品尺寸Common specifications & product size
各型号具体外形尺寸定义见下图，详细尺寸见下表。
See the following figure for the definition of specific external dimensions of each model, and the following table for detailed dimensions.

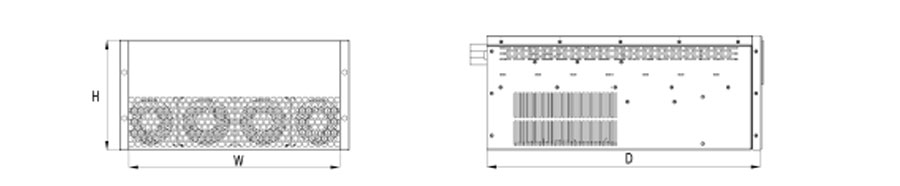

模块外形尺寸定义
Order code 订购代码 | Module capacity 模块容量/kvar | System voltage 系统电压/V | W 宽/mm | D 深/mm | H 高/mm | Weight 重量/kg |
IVD-SVG35 | 35 | 208～690 | 375 | 550 | 170 | 20 |
IVD-SVG50 | 50 | 208～690 | 500 | 550 | 200 | 35 |
IVD-SVG75 | 75 | 208～690 | 500 | 580 | 240 | 40 |
IVD-SVG100 | 100 | 208～690 | 500 | 650 | 270 | 50 |
IVD-SVG150 | 150 | 208～690 | 500 | 650 | 270 | 60 |
★以上仅列出常用型号，其他规格请洽本公司。
无功补偿容量选型：一般按照变压器容量的30%进行选型，例如变压器容量为1250KVA，则需要配备375Kvar的无功补偿，混补模式可配备75Kvar有源+300Kvar的无源（注：无源每组的补偿容量一定要小于有源的补偿容量，才可达到细补的要求。）
Reactive compensation capacity selection: Generally, the selection is based on 30% of the transformer capacity. For example, the transformer capacity is 1250KVA, then 375Kvar reactive power compensation is required, and the mixed compensation mode can be equipped with 75Kvar active + 300Kvar passive (Note: None The compensation capacity of each source group must be smaller than the active compensation capacity to meet the requirements of fine compensation.)
